Augmented Spark Igniter Tests 2012-05-20

Tested the v4 igniter. See the discussion on the main page for more details. There was no video for Run 8.


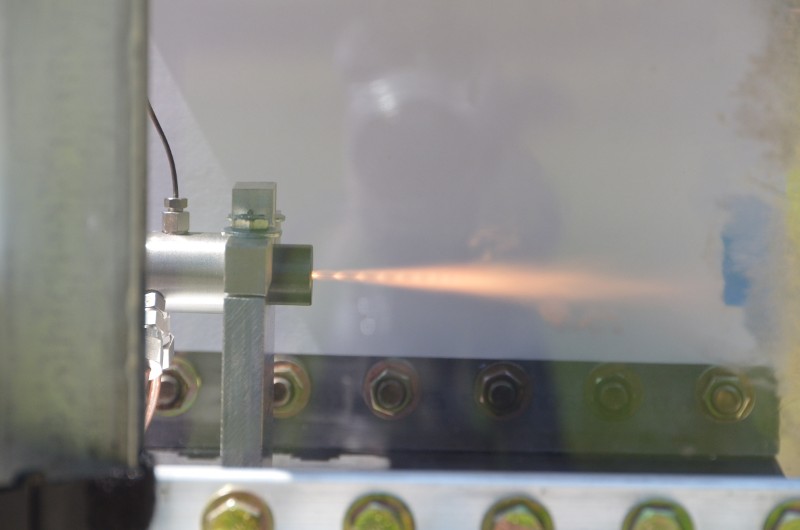

Run 1 Image

20120520-run1-cam1-igniter4.mp4

Run 1 Clip


Run 1 Data

Run 1 Conditions
Mixture ratio = 1.04
wDot total = 0.0059 lb/s


Run 2 Image

20120520-run2-cam1-igniter4.mp4

Run 2 Clip


Run 2 Data

Run 2 Conditions
Mixture ratio = 1.05
wDot total = 0.0058 lb/s


Run 3 Image

20120520-run3-cam1-igniter4.mp4

Run 3 Clip


Run 3 Data

Run 3 Conditions
Mixture ratio = 1.11
wDot total = 0.0058 lb/s


Run 4 Image

20120520-run4-cam1-igniter4.mp4

Run 4 Clip


Run 4 Data

Run 4 Conditions
Mixture ratio = 1.07
wDot total = 0.0062 lb/s


Run 5 Image

20120520-run5-cam1-igniter4.mp4

Run 5 Clip


Run 5 Data

Run 5 Conditions
Mixture ratio = 1.10
wDot total = 0.0058 lb/s


Run 6 Image

20120520-run6-cam1-igniter4.mp4

Run 6 Clip


Run 6 Data

Run 6 Conditions
Mixture ratio = 1.20
wDot total = 0.0058 lb/s


Run 7 Image

20120520-run7-cam1-igniter4.mp4

Run 7 Clip


Run 7 Data

Run 7 Conditions
Mixture ratio = 1.22
wDot total = 0.0058 lb/s


Run 8 Image


Run 8 Data

Run 8 Conditions
Mixture ratio = 1.26
wDot total = 0.0059 lb/s


Run 9 Image

20120520-run9-cam1-igniter4.mp4

Run 9 Clip


Run 9 Data

Run 9 Conditions
Mixture ratio = 1.20
wDot total = 0.0058 lb/s


Run 10 Image

20120520-run10-cam1-igniter4.mp4

Run 10 Clip


Run 10 Data

Run 10 Conditions
Mixture ratio = 1.17
wDot total = 0.0058 lb/s


Run 11 Image

20120520-run11-cam1-igniter4.mp4

Run 11 Clip


Run 11 Data

Run 11 Conditions
Mixture ratio = 1.19
wDot total = 0.0058 lb/s


Augmented Spark Igniter Tests 2012-05-19

Tested the v4 and v5 igniter. All were with v4 except Run 3 which used the v5 igniter (and didn't work). See the discussion on the main page for more details. Update 2012-06-08: I originally used the wrong GOX temperature to calculate the mass flow and mixture ratio. As a result, the values were a lot lower than intended which explains the weak plume seen in the photos and videos.


Run 1 Image

20120519-run1-cam1-igniter4.mp4

Run 1 Clip


Run 1 Data

Run 1 Conditions
Mixture ratio = 0.78
wDot total = 0.0063 lb/s


Run 2 Image

20120519-run2-cam1-igniter4.mp4

Run 2 Clip


Run 2 Data

Run 2 Conditions
Mixture ratio = 1.10
wDot total = 0.0062 lb/s


Run 3 Image

20120519-run3-cam1-igniter5.mp4

Run 3 Clip


Run 3 Data

Run 3 Conditions
v5 body - No combustion


Run 4 Image

20120519-run4-cam1-igniter4.mp4

Run 4 Clip


Run 4 Data

Run 4 Conditions
Mixture ratio = 0.90
wDot total = 0.0059 lb/s


Run 5 Image

20120519-run5-cam1-igniter4.mp4

Run 5 Clip


Run 5 Data

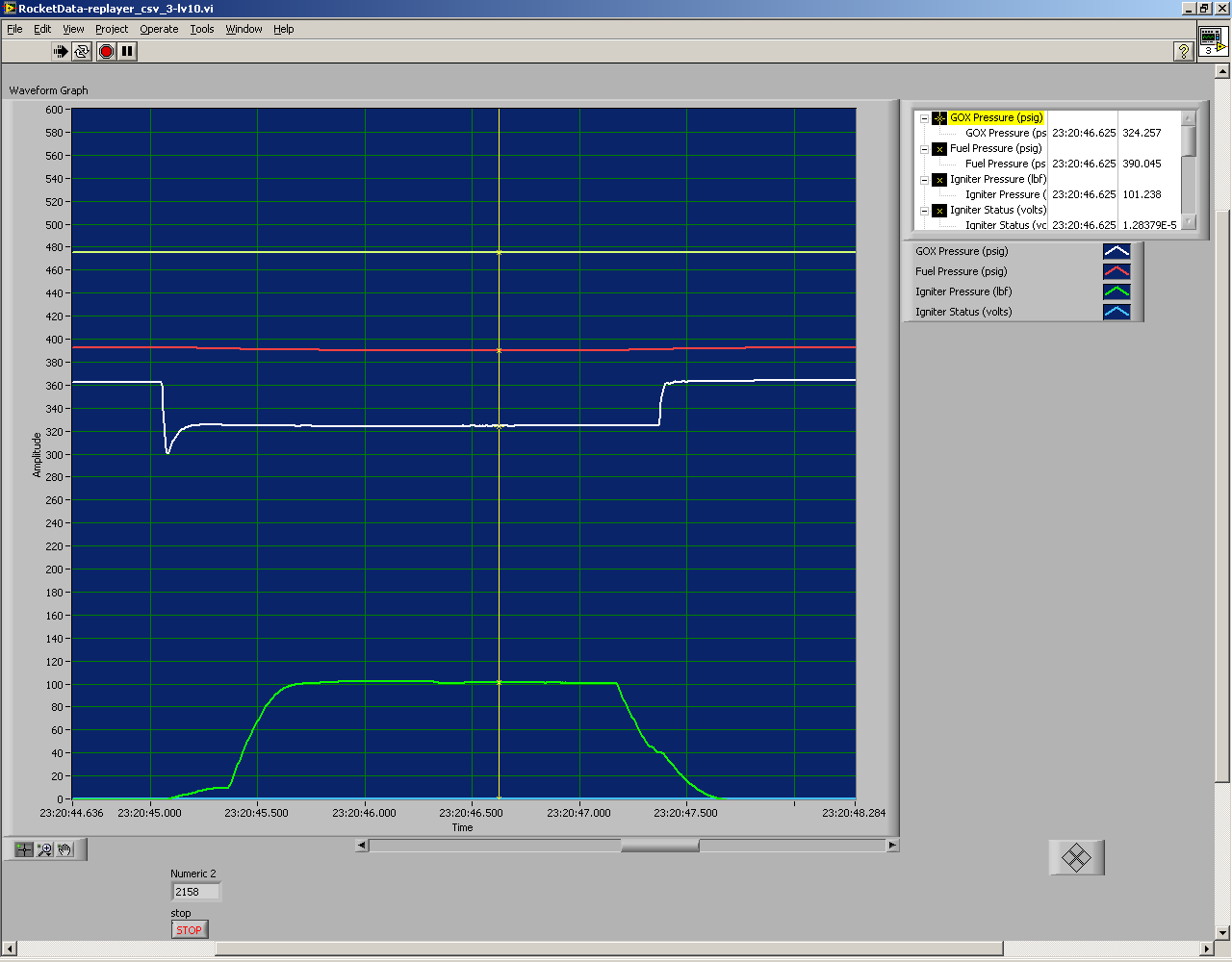

Run 5 Conditions
Mixture ratio = 1.00
wDot total = 0.0061 lb/s


Run 6 Image

20120519-run6-cam1-igniter4.mp4

Run 6 Clip


Run 6 Data

Run 6 Conditions
Mixture ratio = 1.00
wDot total = 0.0061 lb/s


Run 7 Image

20120519-run7-cam1-igniter4.mp4

Run 7 Clip


Run 7 Data

Run 7 Conditions
Mixture ratio = 1.04
wDot total = 0.0059 lb/s


Augmented Spark Igniter Tests 2012-02-05

Tested two versions (short and long) of the v2 igniter. Runs 1-3 were with the short body version (0.75 inch shorter chamber) and Runs 4-5 were with the long body version. See the discussion on the main page for more details. Update 2012-06-08: I originally used the wrong GOX temperature to calculate the mass flow and mixture ratio. As a result, the values were a lot lower than intended which explains the weak plume seen in the photos and videos.


Run 1 Image

20120205-run1-cam1-igniter2-short.mp4

Run 1 Clip


Run 1 Data

Run 1 Conditions
Short body version
Mixture ratio = 0.87
wDot total = 0.0055 lb/s


Run 2 Image

20120205-run2-cam1-igniter2-short.mp4

Run 2 Clip


Run 2 Data

Run 2 Conditions
Short body version
Mixture ratio = 0.91
wDot total = .0054 lb/s


Run 3 Image


Run 3 Image (end of run)

20120205-run3-cam1-igniter2-short.mp4

Run 3 Clip


Run 3 Data

Run 3 Conditions
Short body version
Mixture ratio = 1.48
wDot total = 0.0046 lb/s


Run 4 Image

20120205-run4-cam1-igniter2-long.mp4

Run 4 Clip


Run 4 Data

Run 4 Conditions
Long body version
Mixture ratio = 0.71
wDot total = 0.0072 lb/s


Run 5 Image

20120205-run5-cam1-igniter2-long.mp4

Run 5 Clip


Run 5 Data

Run 5 Conditions
Long body version
Mixture ratio = 0.92
wDot total = 0.0056 lb/s


Augmented Spark Igniter Tests 2012-02-04

Tested two versions (short and long) of the v2 igniter. Runs 1-5 were with the short body version (0.75 inch shorter chamber) and Run 6 was with the long body version. See the discussion on the main page for more details. Update 2012-06-08: I originally used the wrong GOX temperature to calculate the mass flow and mixture ratio. As a result, the values were a lot lower than intended which explains the weak plume seen in the photos and videos.


Run 1 Image

20120204-run1-cam1-igniter2-short.mp4

Run 1 Clip


Run 1 Data

Run 1 Conditions
Short body version
Mixture ratio = 0.57
wDot total = 0.0068 lb/s


Run 2 Image

20120204-run2-cam1-igniter2-short.mp4

Run 2 Clip


Run 2 Data

Run 2 Conditions
Short body version
Mixture ratio = 0.81
wDot total = 0.0055 lb/s


Run 3 Image

20120204-run3-cam1-igniter2-short.mp4

Run 3 Clip


Run 3 Data

Run 3 Conditions
Short body version
Mixture ratio = 0.93
wDot total = 0.0054 lb/s


Run 4 Image

20120204-run4-cam1-igniter2-short.mp4

Run 4 Clip


Run 4 Data

Run 4 Conditions
Short body version
Mixture ratio = 0.94
wDot total = 0.0053 lb/s


Run 5 Image


Run 5 Image (end of run)

20120204-run5-cam1-igniter2-short.mp4

Run 5 Clip


Run 5 Data

Run 5 Conditions
Short body version
Mixture ratio = 0.84
wDot total = 0.0053 lb/s


Run 6 Image

20120204-run6-cam1-igniter2-long.mp4

Run 6 Clip


Run 6 Data

Run 6 Conditions
Long body version
Mixture ratio = 0.93-0.96
wDot total = 0.0055-0.0044 lb/s


Augmented Spark Igniter Tests 2012-01-16

Tested the new v1 igniter four times. For the first two runs, there is no visible plume, only a slight darkening in the still images. See the discussion on the main page for more details. Update 2012-06-08: I originally used the wrong GOX temperature to calculate the mass flow and mixture ratio. As a result, the values were a lot lower than intended which explains the weak plume seen in the photos and videos.


Pre-test image


Test setup


Test control


20120116-run1-cam1-igniter1.mp4

Run 1 Clip


Run 1 Data

Run 1 Conditions
Mixture ratio = 0.72
wDot total = 0.0071 lb/s


Run 2 Image (before run)


Run 2 Image (during run)

20120116-run2-cam1-igniter1.mp4

Run 2 Clip


Run 2 Data

Run 2 Conditions
Mixture ratio = 0.68
wDot total = 0.0073 lb/s


Run 3 Image (during run)

20120116-run3-cam1-igniter1.mp4

Run 3 Clip


Run 3 Data

Run 3 Conditions
Mixture ratio = 1.07-1.17
wDot total = 0.0049-0.0046 lb/s


Run 4 Image (during run)

20120116-run4-cam1-igniter1.mp4

Run 4 Clip


Run 4 Data

Run 4 Conditions
Mixture ratio = 2.32
wDot total = 0.0041 lb/s
