Note: The text below applies to the test stand used for the original uncooled engine. Information about updates for the more recent testing is in the News section.

The test stand has taken way more time to put together than I imagined. In fact, it's taken about 5X more time than the design and fabrication of the uncooled engine.

I finally finished the failsafe control unit. It's purpose is to control the various remote devices (relays, solenoids, ignitor, etc.) during the test. It also provides for a remote control box that includes a dump switch and some status indicators. The card interfaces to a National Instruments PXI-6527 isolated DIO board and will be controlled by the test program in LabVIEW.

I used Eagle Schematic for the drawings. It runs in Linux and Windows and they also have a free version (which I'm using). I have hand sketches of the overall instrumentation setup which I'll convert over to Eagle when I get some more time.

I added a separate fill port to the LOX tank to make it easier to get it closed back up after filling based on my tests with LN2. The internal threads on the tank got iced up real bad and I couldn't thread the burst disk fitting back all the way in. The new tube connector has external threads on the top so it is much easier to cap it off after I'm done filling it.


Drawings

teststand_regen3_asi_rev_a_mod.pdf

Test Setup - new


Test Setup - original

failsafe1.pdf

Failsafe schematic Sheet 1

failsafe2.pdf

Failsafe schematic Sheet 2

failsafe3.pdf

Failsafe schematic Sheet 3

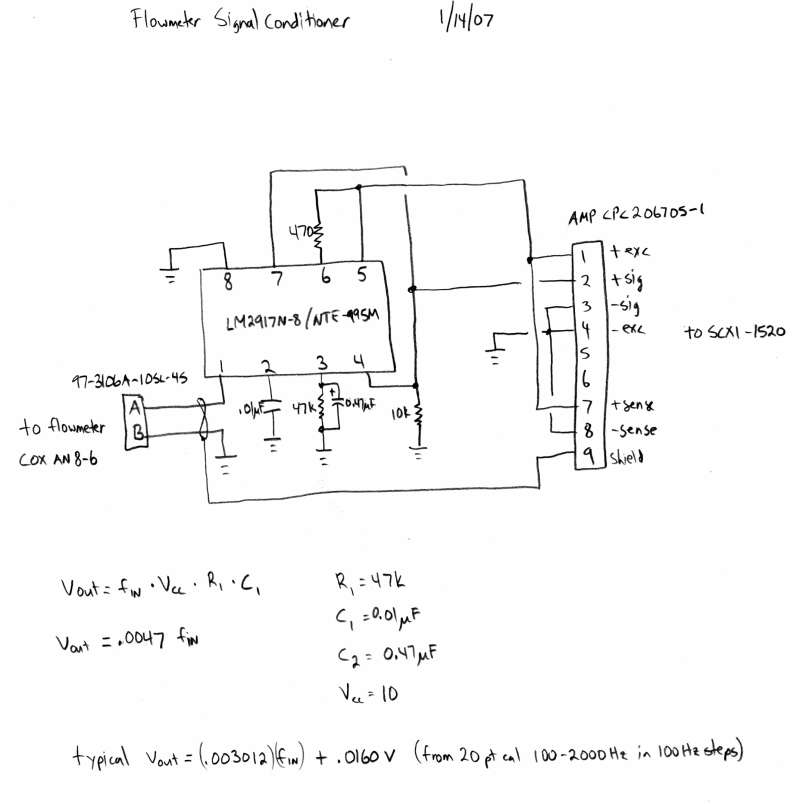

Flowmeter signal conditioner

fireextfitting.pdf

Fitting for 2.5 gal Fire Extinguisher

burstdiskholder2_base.pdf

Burst Disc Holder Base

burstdiskholder2_cap.pdf

Burst Disc Holder Cap

co2cylinderfitting.pdf

Fitting for 15 lb CO2 Cylinder


Rocket static test structure



Photos


Fitting for 2.5 gal fire extinguisher

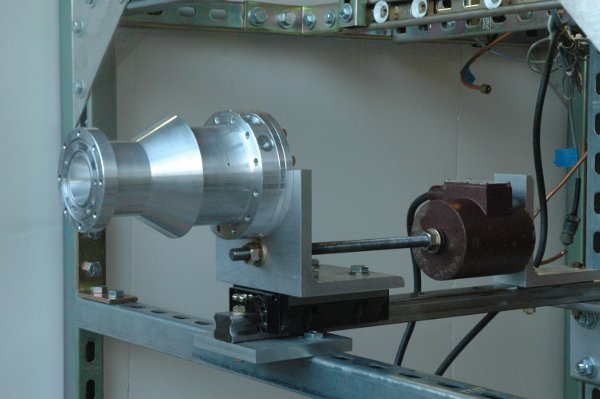

Load cell bracket (new)


Propellant tank Version 4


Test stand (with happy engineer!)


Load cell bracket (old)


Remote controlled ball valve


Cryogenic ball valve


Helium solenoid valve


Air solenoid valves


Propellant Tank Version 1


Propellant Tank Version 2


Scuba tank fitting


Propellant tank fitting and burst disk holder

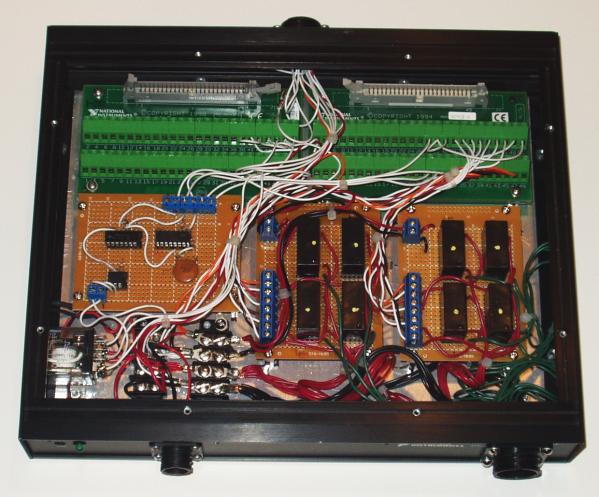

Failsafe controller


Failsafe remote


LOX tank fill port


Remote equipment rack


Load cell calibration


Flowmeter parts after failure

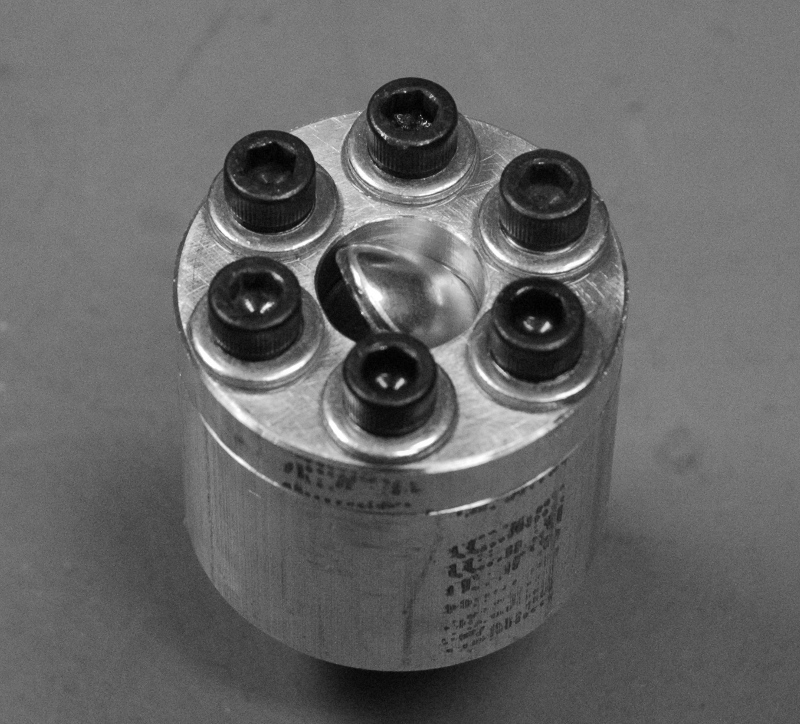

Burst disc holder with failed disc

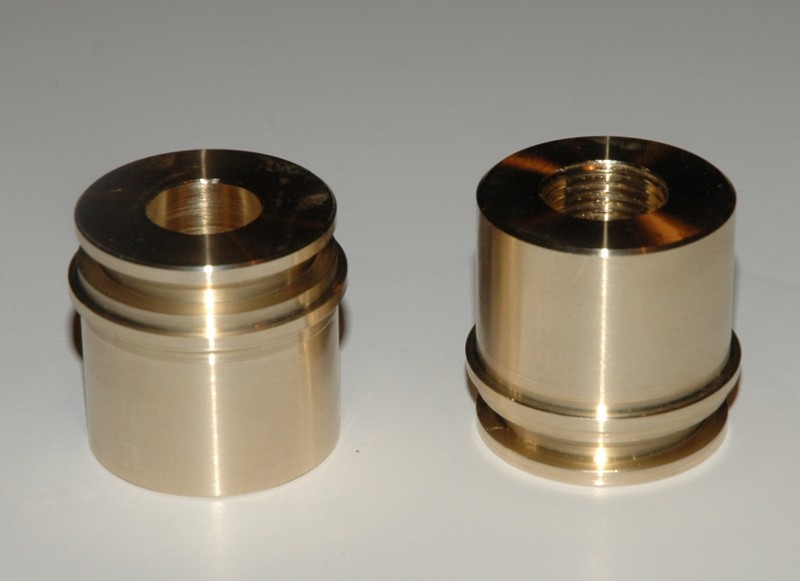

Burst disc holder base

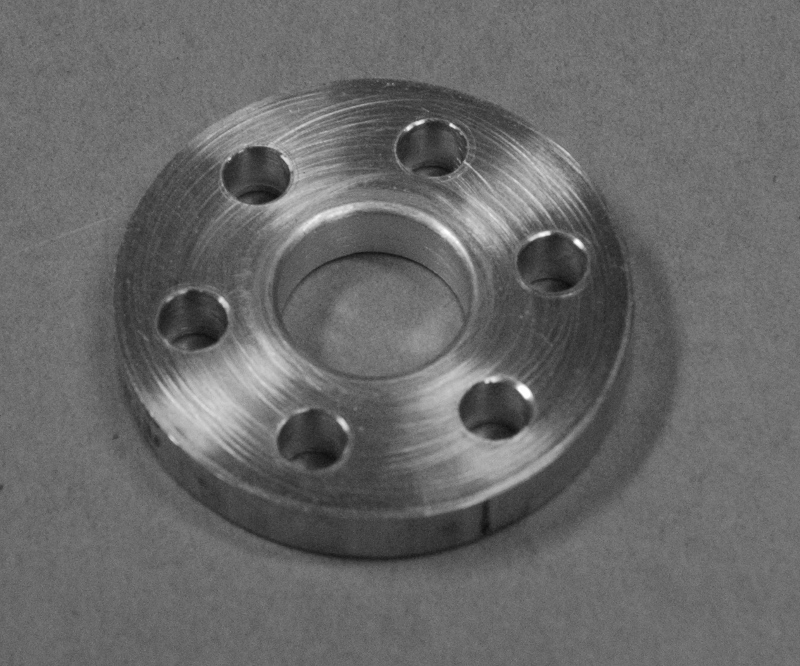

Burst disc holder cap

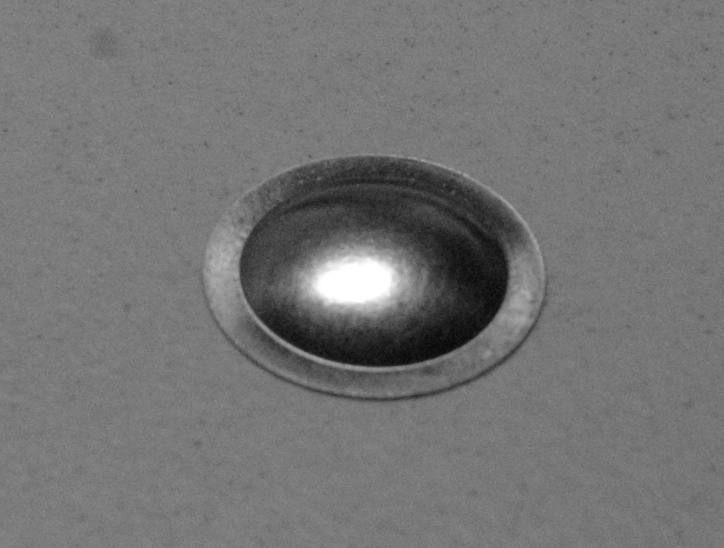

Commercial burst disc

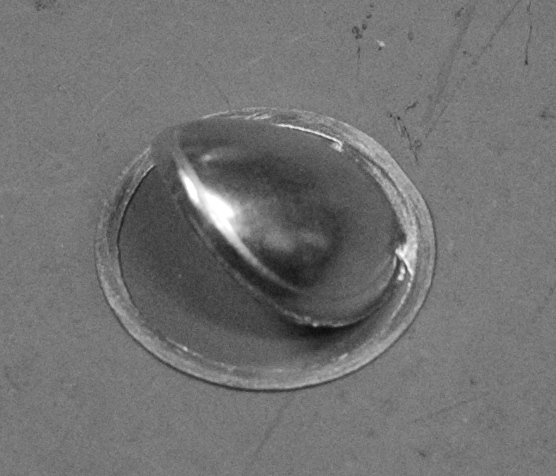

Failed burst disc


Blast Shield

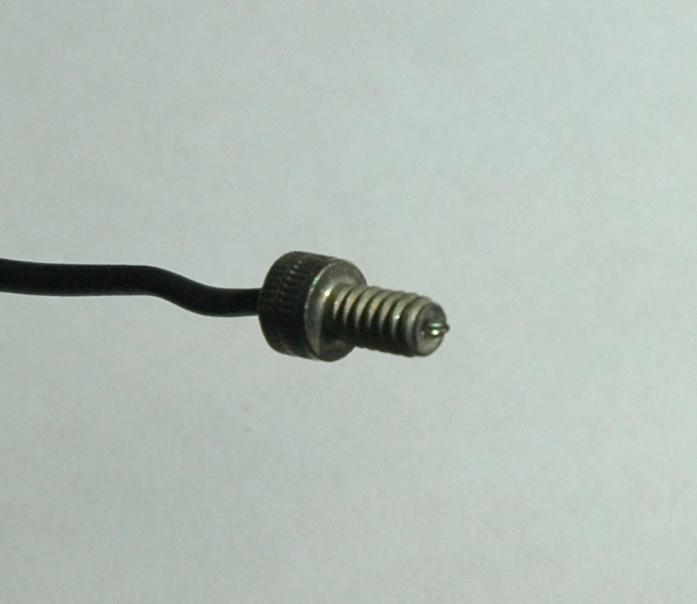

Chamber thermocouple in Al cap screw


Plumbing for 250 lbf engine (side)


Plumbing for 250 lbf engine (front)


Plumbing for 250 lbf engine (top)
